Rooftop Solar Mounting Systems

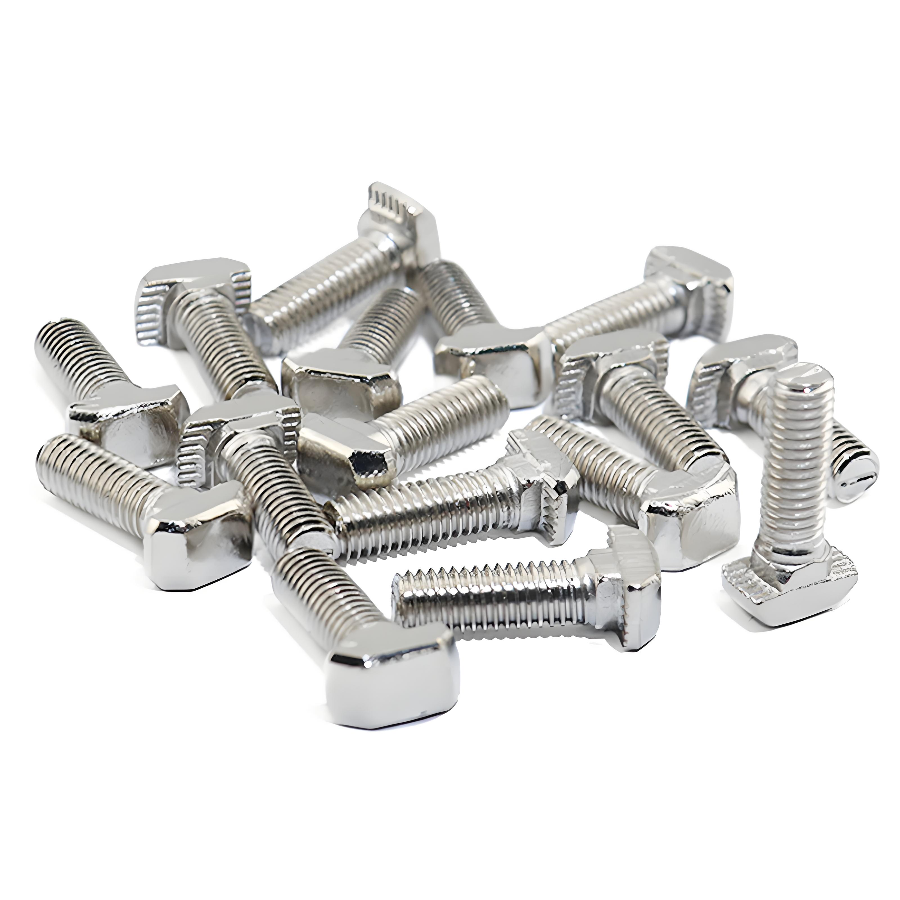

• Origin: China

• Standards: GB/T 37-1988 (Standard for T-slot bolts), GB/T 3098.1-2010 (Mechanical performance of fasteners), GB/T 5782-2000 (Bolt dimensions), DIN 188 (German standard), ASME B18.5 (American standard), JIS B 1166 (Japanese standard)

• Material: Stainless steel, commonly A2-70 grade

• Model: M5 to M48 thread sizes

• Specifications: Tensile strength ≥ 520MPa

• Other: Stainless steel bolts with high corrosion resistance, commonly used for carbon steel and stainless steel materials.

• Origin: China

• Standards: GB/T 4240-2009 (Common standard in China), ASTM (American standard), JIS (Japanese standard)

• Material: AISI stainless steel, commonly 304, 316, 316L

• Model: 304, 316, 316L

• Specifications: High corrosion resistance, suitable for welding without annealing for 316L

• Other: 316 steel contains molybdenum for enhanced chloride resistance.

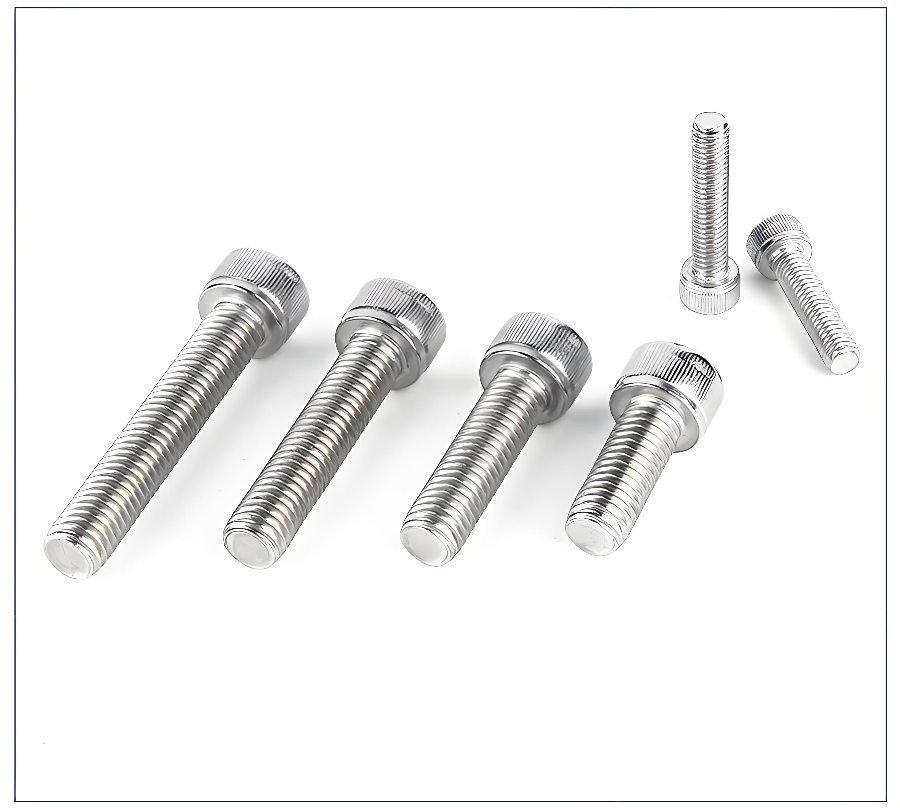

• Origin: China

• Standards: GB/T 70.1-2008, ISO 4762:2004, DIN 912

• Material: Austenitic stainless steel, commonly SUS202, SUS304, SUS316

• Model: M1.6 to M36 thread sizes, common models like M3×8, M4×10

• Specifications: Full thread and half thread types, A2-70 or A4-70 performance grades

• Other: A2-70 grade commonly used for good corrosion resistance.

• Origin: China

• Standards: ASTM A240/A240M, EN 10088-2, GB/T 3280

• Material: Stainless steel, commonly 304 and 316L

• Model: Custom as per design requirements

• Specifications: 304 stainless steel has ≥18% chromium and ≥8% nickel for general corrosion resistance

• Other: 316L contains molybdenum for enhanced chloride resistance, often used in marine or chemical fields.

• Origin: China

• Standards: GB/T 2518-2019

• Material: Aluminum alloy, commonly 6063-T5

• Model: W type, M type

• Specifications: Thickness 0.5–1.2mm, width 138mm, load capacity 3.5kN/m²

• Other: Customizable length, e.g., 6.6m or standard 80cm.

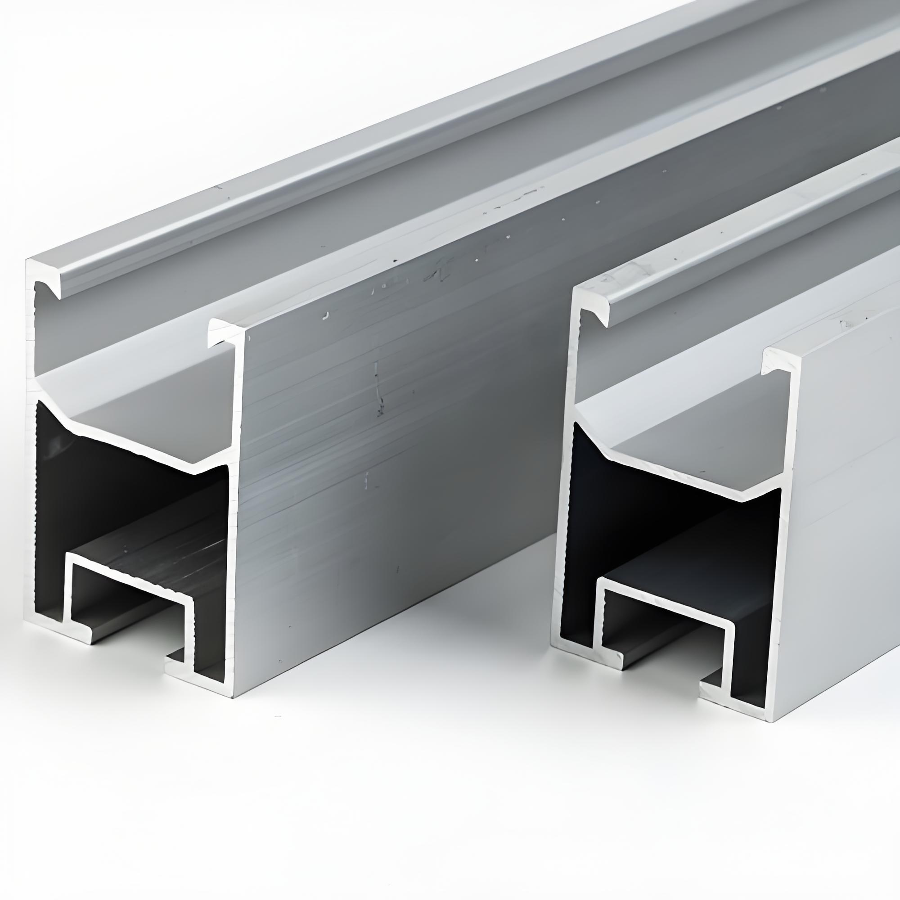

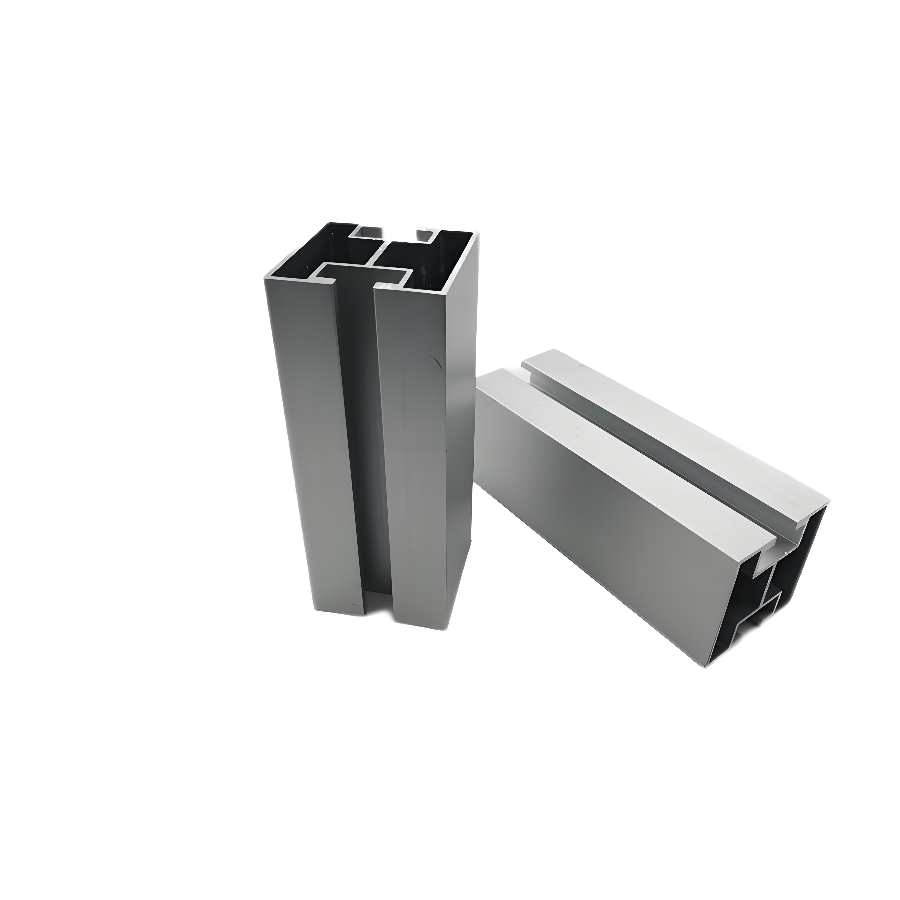

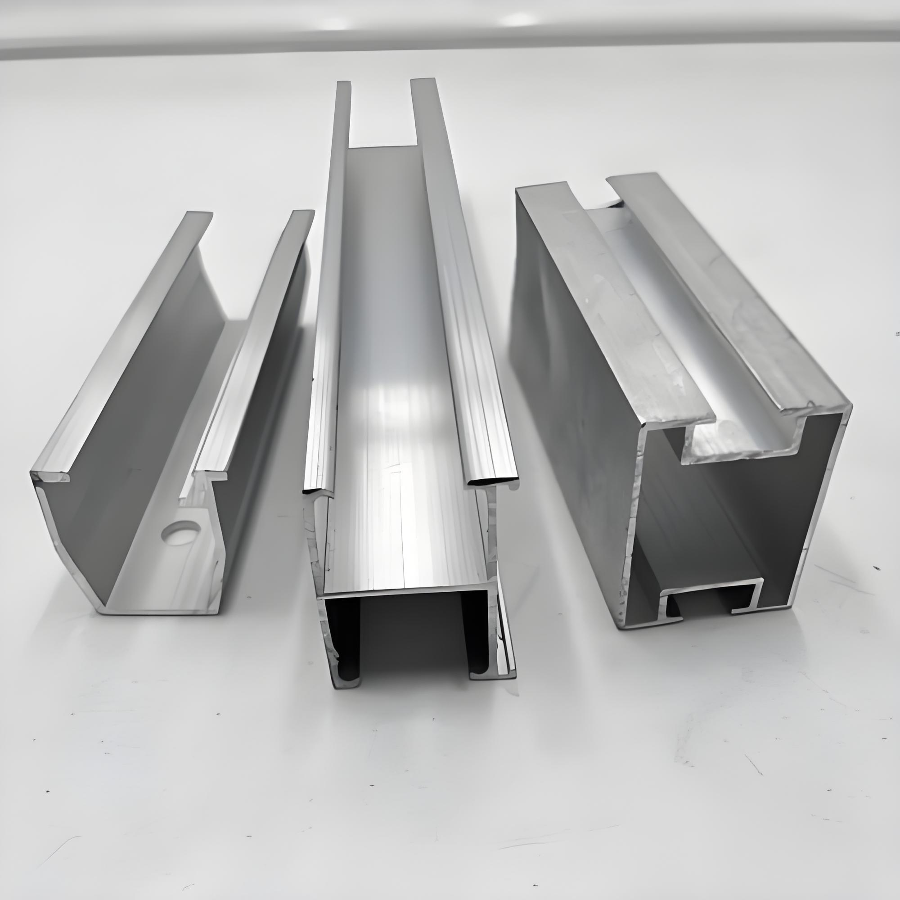

• Origin: China

• Standards: GB/T 32182-2023, GB/T 26494-2023, GB/T 3880 series

• Material: Aluminum alloy, commonly 6063-T5/T6, 6061-T6

• Model: 6063-T5, 6061-T6, 5083-O

• Specifications: Tensile strength ≥ 175MPa for 6063-T5, ≥ 260MPa for 6061-T6

• Other: Used in lightweight rails and components for rail transportation and other structures.

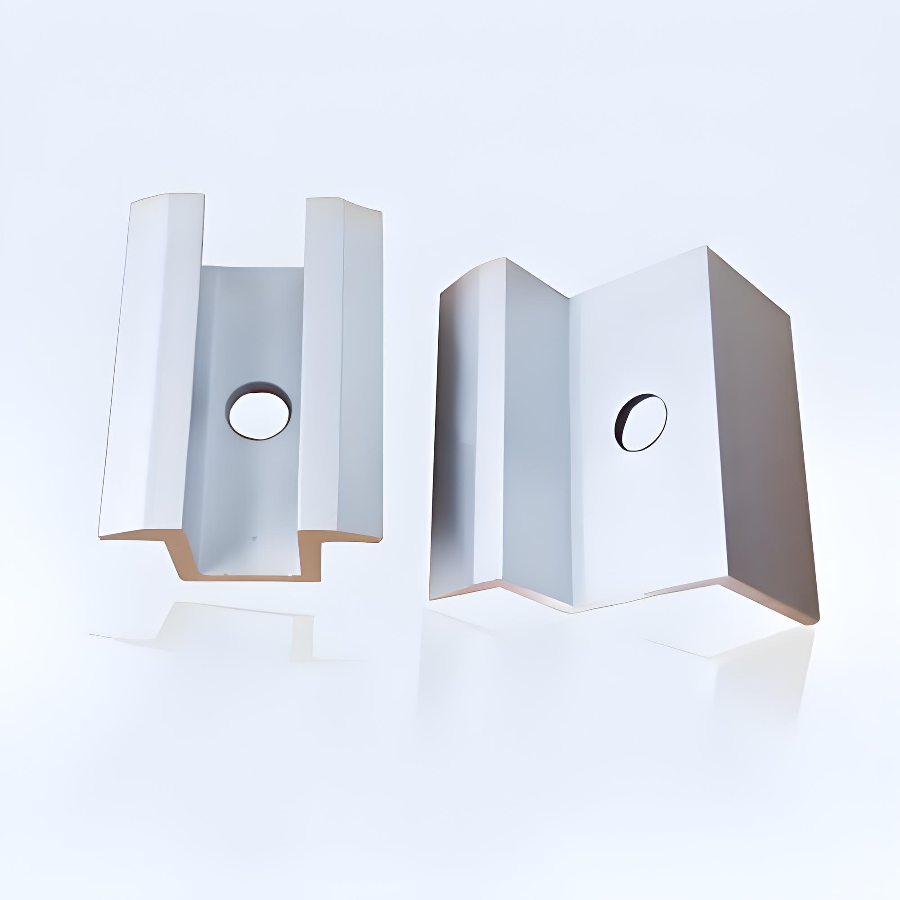

• Origin: China

• Standards: GB/T 12167-1990, GB/T 3880.3-2024

• Material: Aluminum alloy, commonly 5052, 6061, 7075

• Model: Custom based on application

• Specifications: Good tensile strength and corrosion resistance

• Other: Used in electrical work and other industrial applications.

• Origin: China

• Standards: JG/T 490-2016, GB/T 13912-2002

• Material: Carbon structural steel, commonly Q235B

• Model: Custom based on design requirements

• Specifications: Corrosion protection layer thickness not less than 65 microns

• Other: Surface treatment should reach rust removal level Sa2 1/2 according to GB 8923-88.

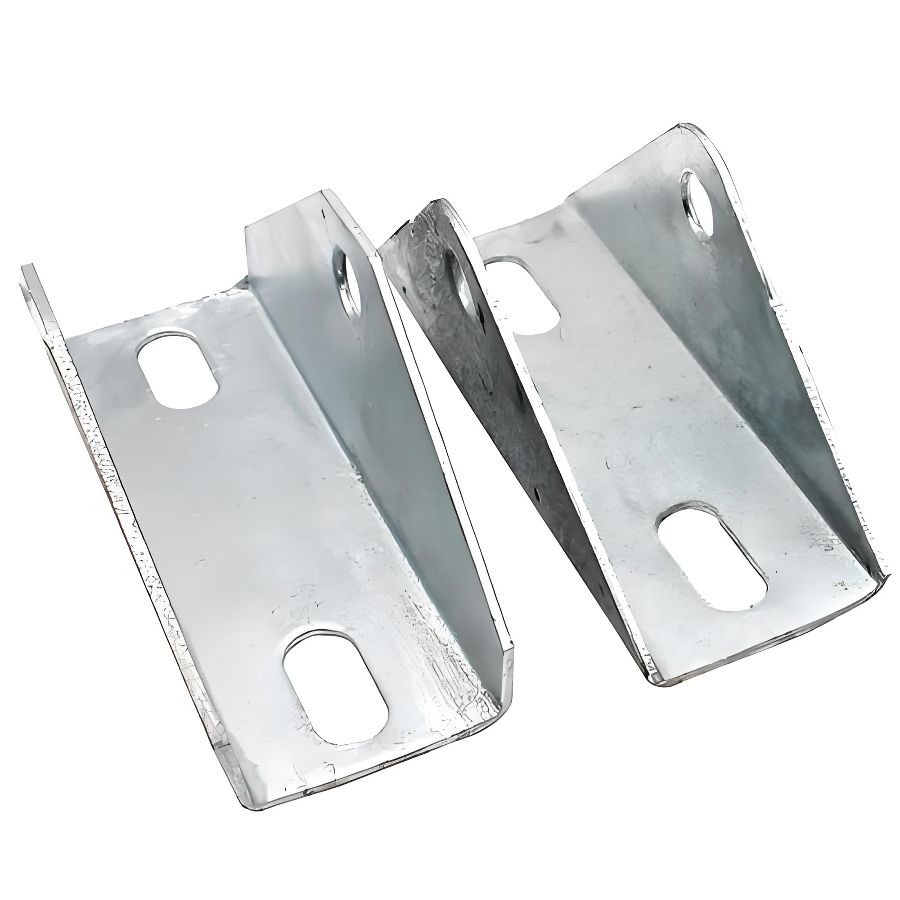

• Origin: China

• Standards: National standards, e.g., GB

• Material: Commonly Q235B steel

• Model: 5x50x(50+50)mm, 5x50x(70+50)mm, 6x80x(100+60)mm

• Specifications: Hole spacing details like 11×30/13x30mm, customizable based on client drawings

• Other: Products available with customized hole spacing, depending on project requirements.

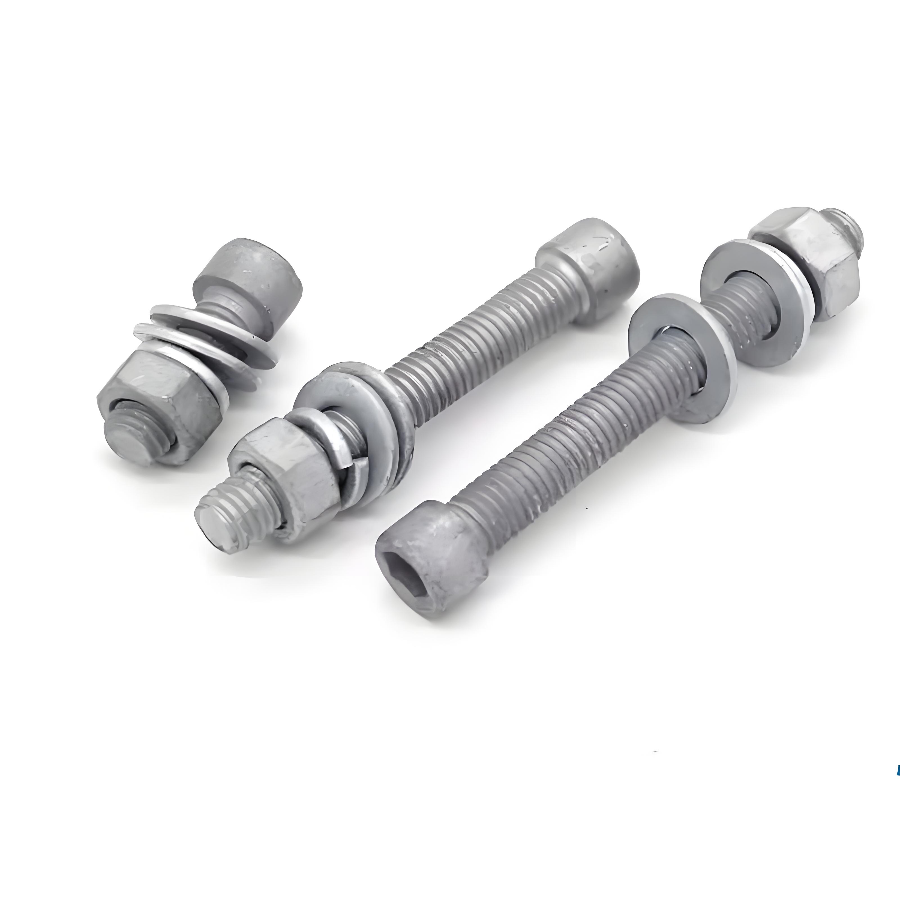

• Origin: China

• Standards: GB/T 70.1-2008, DIN 912, ISO 4762, ANSI/ASME B18.3

• Material: Carbon steel (e.g., Q235), alloy steel (e.g., AISI4140, 35CrMo), stainless steel (e.g., AISI304, AISI316)

• Model: M6×20-8.8-HDZn

• Specifications: Thread sizes from M1.6 to M36

• Other: Performance grades such as 4.8, 8.8, 10.9, 12.9.

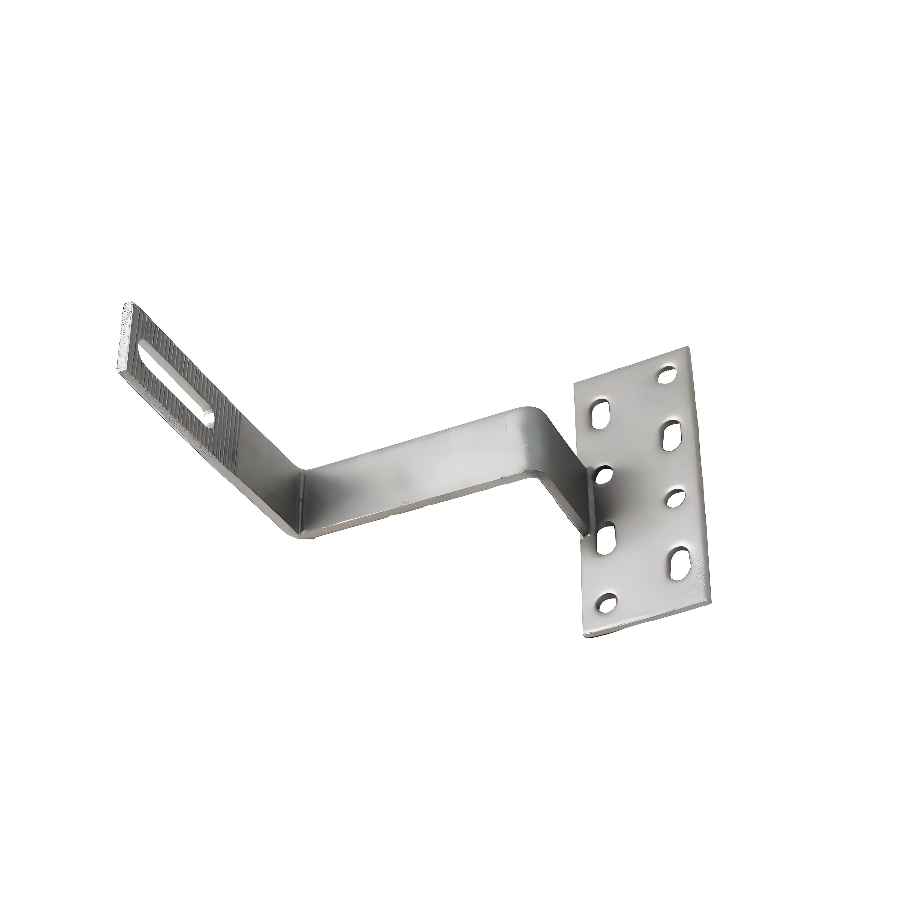

• Origin: China

• Standards: National standards (GB), industry norms

• Material: Steel, commonly Q235B, with hot-dip galvanizing or zinc-aluminum-magnesium alloy coating for corrosion resistance

• Model: Custom based on client drawings

• Specifications: Standard size like 150654.0

• Other: Custom-made based on application for photovoltaic brackets or building structures.

• Origin: China

• Standards: GB/T 12755-2008, GB/T 13912

• Material: Q235B carbon steel

• Model: Custom based on design requirements

• Specifications: For galvanized steel, thickness and coating specifications apply

• Other: Based on specific application needs, material and coating may vary.

• Origin: China

• Standards: Enterprise or national standards, such as Baosteel hot-dip galvanized products

• Material: Hot-dip galvanized steel or stainless steel

• Model: Commonly 470 type, with customizable base height (60mm, 65mm, 75mm)

• Specifications: Widths like 12.5mm or 14.5mm

• Other: Suitable for metal roofing systems, customizable for height, width, and thickness.

• Origin: China

• Standards: JIS C8955:2017 (Japanese standard), or national standards like GB/T

• Material: Corrosion-resistant, high-strength materials like aluminum alloy (AI6005-T5) or stainless steel (SUS304, SUS316L)

• Model: Customized by manufacturer, e.g., “AHWH-WG-001”

• Specifications: Span range 1.2m–3.0m, wind pressure resistance 60m/s

• Other: Varies greatly based on model and manufacturer specifications.

• Origin: China

• Standards: GB/T 13912-2020, GB/T 2518-2019, GB/T 21764-2008

• Material: Steel with zinc-aluminum-magnesium coating

• Model: ZM275g (zinc-aluminum-magnesium coating weight)

• Specifications: Width × Height (e.g., 50×50mm, 100×100mm)

• Other: Corrosion resistance up to 5000 hours in salt spray testing.

• Origin: China

• Standards: YB/T 4761-2019 (for low aluminum zinc-aluminum-magnesium), YB/T 4634-2017 (for high aluminum)

• Material: SGS51D-150G, ZMA275, AZM100, AZM150

• Model: Custom sizes for applications

• Specifications: Thickness 0.5mm to 1.0mm, customized length

• Other: Used for photovoltaic support systems and specific applications requiring corrosion resistance.

• Origin: China

• Standards: T/CSTA 0077—2024, YB/T 4634-2017, YB/T 4761

• Material: Zinc-aluminum-magnesium coated steel plate

• Model: 4141-4162, 41522.0

• Specifications: Length customizable, wall thickness 1.5-2.5mm

• Other: Similar specifications as in previous bracket information.

Origin: China

Standards: National standards (GB)

Material: Q235B steel, zinc-aluminum-magnesium coating

Model: U-type, M-type

Specifications: Thickness 0.5mm to 1.0mm

Other: Used for BIPV systems or sunroom brackets.
